Olympus microscopes and photomicrographic equipment

Eyepiece adapters

Introduction

The eyepiece adapters are designed to clamp on to the eyepiece tube of a microscope, and provide a circular dovetail fitting to which either a Photomicro Adapter L or a specialised photomicrographic system can be clamped. A microscope photo eyepiece fits inside the eyepiece adapter.

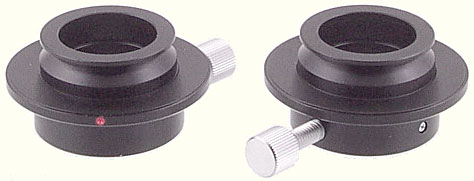

Adaptadores Oculares PM-ADP, PM-ADF e PM-ADG-3

Olympus OM Eyepiece Adapters PM-ADP, PM-ADF and PM-ADG-3

There are 3 series of adapters:

Going digital

There are no moving or electronic connections between the eyepiece adapters and the Photomicro Adapter L and the Olympus OM camera body, so it is easy to adapt digital camera bodies that are less deep than the OM, and Canon EOS digital SLRs are often used. The most suitable are the EOS 5D Mark II, 5D Mark III and 6D, because they have a sensor the same size as 35 mm film.

Olympus 38 mm circular dovetail

Many Olympus microscopes use a nominal 38 mm circular dovetail for attaching photomicrographic equipment, including the Photomicro Adapter L that was originally intended for use with an OM camera body or the SC 35 Type 12 scientific camera but can easily be adapted to accept a Canon EOS digital SLR instead. The dovetail was also used for attaching the PM10, PM20 and PM30 film-based photomicrographic systems, and it is still used for some video systems.

A cauda de andorinha é incorporada nas cabeças trinocular BH2-TR30, BH2-SWTR30 e BH2-TTR para o microscópio composto BH-2, nos primeiros microscópios compostos Vanox, e no microscópio invertido IMT-2. É fornecido pelo adaptador AH2-ADF para microscópios Vanox recentes, pelo tubo fotográfico SZ-PT para os microscópios estéreo SZ4045 TR, SZ6045 TR e SZ1145 TR, e pelo tubo fotográfico SZH-PT para os microscópios estéreo SZH e SZH10.

Para microscópios mais recentes, a cauda de andorinha é fornecida pelos tubos fotográficos U-DPT, U-SPT, U-VPT, IX-SPT e IX2-SPT.

Seção transversal do adaptador ocular PM-ADF
Diâmetro da seção de andorinha de topo 37,2 mm
Diâmetro da parte inferior da cauda de andorinha 37,8 mm
Altura de cauda de andorinha 11,0 mm
Seção transversal do PM-ADF

Para microscópios mais antigos, com tubos oculares verticais simples de 25 mm de diâmetro externo, a Olympus fez o adaptador de ocular PM-ADF para fornecer a cauda de andorinha circular. Tubos verticais adequados são encontrados nos cabeçotes trinocular BH-TR45 e BH-SWTR para o microscópio BH e o microscópio invertido IMT, a cabeça trinocular BH-TR45-W para o microscópio composto CH-2 e o microscópio invertido CK2, e o Cabeça trinocular CH3-TR45 para o microscópio composto CH40 e os microscópios invertidos CK40 e CK40M.

Adaptador de Ocular PM-ADF

Este adaptador destina-se a ser utilizado com as oculares fotográficas NFK (para a série de objetivas Olympus LB, 45 mm parfocais) e as oculares fotográficas FK (para objetivas anteriores, 36,65 mm parfocais). Não é possível usar as oculares fotográficas PE, porque elas são muito largas para caber. O adaptador prende-se a um tubo monocular vertical com um diâmetro externo de 25 mm ou um pouco menos (incluindo o BH-TR45, o BH-SWTR, o BH-PT, o BH-TR45-W, o CH3-TR45 e o BH2-PT); tem um lábio estreito que fica em cima do tubo. Alguns microscópios mais antigos que usam oculares padrão têm tubos de paredes espessas com diâmetro externo maior que 25 mm, e o adaptador PM-ADF não pode ser usado com eles.

Adaptador Ocular PM-ADF

Adaptador de ocular Olympus OM PM-ADF

O adaptador não está marcado como “Olympus” ou “PM-ADF”.

Oculares Série FK ou NFK
Encaixe superior Olimpo 38 mm em cauda de andorinha
Encaixe do tubo 25 mm de diâmetro externo
Altura 40,9 mm
Diâmetro (seção principal) 49,3 mm
Diâmetro (colarinho) 56,9 mm
Peso (versão mate) 107 g
Peso (versão brilhante) 106 gm
Microscópio ref. PM-ADF
Olympus no. B-0720
Catálogo dos EUA no. 201-186
Introduzido 1972
Interrompido 2003
Adaptador Ocular PM-ADF
PM-ADF com ocular NFK na cabeça trinocular Olympus BH-TR45

Versões

Duas versões são conhecidas. A versão mais antiga é na maior parte preta brilhante do lado de fora, exceto a cauda de andorinha que é preto fosco. A versão mais recente é toda em preto mate. Quando foi introduzido pela primeira vez, o PM-ADF era conhecido como o “FK Adapter” ou o “Ocular Adapter FK”.

Livreto de instruções

Reproduzido com permissão do proprietário dos direitos autorais, Olympus Optical Co., Ltd

COMO USAR OS ADAPTADORES PHOTOMICRO L & H

uma. Para foto Ocular FK

  1. Prenda o Adaptador da Ocular PM-ADF no tubo fotográfico do microscópio e prenda com o parafuso fornecido.
  2. Insert the selected Eyepiece FK into the Eyepiece Adapter PM-ADF.
  3. Fit the Adapter L over the Eyepiece Adapter PM-ADF pushing all the way down, and clamp the entire camera assembly.

Eyepiece Adapter PM-ADG

This adapter is intended for use with the Olympus G series 10×, 15× and 20× eyepieces, which are used with stereo microscopes and fit a tube with an inner diameter of approximately 30 mm. It is not possible to use FK, NFK, PE or P eyepieces. The adapter clamps on to one of the inclined binocular tubes of the Olympus JM, SZ, VB, VE, VM and X series stereo microscopes, or others with an external diameter of approximately 31.5 mm.

Adaptador de Ocular PM-ADG

Olympus OM Eyepiece Adapter PM-ADG

The adapter is in 2 parts, which screw together. For the G 10× eyepiece, the eyepiece is inserted in the bottom section, and the top section is screwed on top of it. For the G 15× and G 20× eyepieces, the top and bottom sections are screwed together, and the eyepiece is inserted into the top section.

The adapter is not marked “Olympus” or “PM-ADG”.

Eyepieces G series
Top fitting Olympus 38 mm dovetail
Tube fitting 31.5 mm outside diameter
Height 37.6 mm
Diameter (main section) 49.9 mm
Diameter (collar) 56.9 mm
Weight 108.2 gm
Microscope ref. PM-ADG
US catalog no.
Introduced 1972
Discontinued ?

Versions

Only one version is known of the original two-section PM-ADG. When it was first introduced, the PM-ADG was known as the “G Adapter” or the “Eyepiece Adapter G”. The PM-ADG was replaced by the PM-ADG-3, which has an additional section that fits between the other two, and allows the GWH 10× high-eyepoint eyepiece to be used.

Another version, the PM6-ADG, was for use with the PM-6-8 35 mm photomicrography camera instead of the Photomicro Adapter L.

Instruction booklet

Reproduced with permission from the copyright owner, Olympus Optical Co., Ltd

HOW TO USE THE PHOTOMICRO ADAPTERS L & H

c. For Eyepiece G10×

  1. Unscrew the upper part of the Eyepiece Adapter PM-ADG.
  2. insert the G10× into the lower part.
  3. Replace the upper part of the Adapter.
  4. Attach the Eyepiece/Eyepiece Adapter combination to the Adapter L, and clamp.
  5. Insert the entire camera assembly into the microscope eyepiece sleeve pushing all the way down, and clamp.

d. For Eyepieces G15× and G20×

  1. insert the G15× or G20× into the Adapter PM-ADG.
  2. Attach the Eyepiece Adapter PM-ADG-3 to the eyepiece sleeve, and clamp.
  3. Fit the Adapter L over the Eyepiece Adapter pushing all the way down, and clamp the entire camera assembly.

OLYMPUS
OLYMPUS OPTICAL CO., LTD.
43-2 Hatagaya 2-chome, Shibuya-ku, Tokyo, Japan

Eyepiece Adapter PM-ADG-3

This adapter is intended for use with the Olympus G series 10×, 15× and 20× eyepieces and with the GWH 10× high-eyepoint eyepiece, all of which are used with stereo microscopes and fit a tube with an inner diameter of approximately 30 mm. It is not possible to use FK, NFK, PE or P eyepieces. The adapter clamps on to one of the inclined binocular tubes of the Olympus JM, SZ, VB, VE, VM and X series stereo microscopes, or others with an external diameter of approximately 31.5 mm.

Adaptador Ocular PM-ADG-3

Olympus OM Eyepiece Adapter PM-ADG-3

The PM-ADG-3 cannot be used with recent Olympus stereo microscopes such as the SZ 4045, because their eyepiece tubes have an outside diameter of 32.7 mm. The GSWH 10× super-wide high-eyepoint eyepiece cannot be used, because it is too big to fit inside the adapter.

The adapter is in 3 parts, which screw together. The top and bottom sections are identical to those of the PM-ADG adapter. For the G 10× eyepiece, the middle section of the adapter is not used; the eyepiece is inserted in the bottom section, and the top section is screwed on top of it. For the G 15× and G 20× eyepieces, the middle section of the adapter is not used; the top and bottom sections are screwed together, and the eyepiece is inserted into the top section. For the GWH 10× high-eyepoint eyepiece, all three sections are used; the eyepiece is inserted into the bottom section, and the middle and top sections are screwed on top of it.

Eyepieces G series
Top fitting Olympus 38 mm dovetail
Tube fitting 31.5 mm outside diameter
Height 51.5 mm
Diameter (main section) 49.9 mm
Diameter (collar) 56.9 mm
Weight 145.3 gm
Microscope ref. PM-ADG-3
Olympus no. B-0719A
US catalog no.
Introduced ?
Discontinued 2003

Versions

Only one version of the PM-ADG-3 is known. It replaced the PM-ADG, which has only two sections.

Instruction booklet

Reproduced with permission from the copyright owner, Olympus Optical Co., Ltd

HOW TO USE THE PHOTOMICRO ADAPTERS L & H

c. For Eyepiece G10×

  1. Unscrew the upper part of the Eyepiece Adapter PM-ADG-3.
  2. insert the G10× into the lower part.
  3. Replace the upper part of the Adapter.
  4. Attach the Eyepiece/Eyepiece Adapter combination to the Adapter L, and clamp.
  5. Insert the entire camera assembly into the microscope eyepiece sleeve pushing all the way down, and clamp.

d. For Eyepieces G15× and G20×

  1. insert the G15× or G20× into the Adapter PM-ADG-3.
  2. Attach the Eyepiece Adapter PM-ADG-3 to the eyepiece sleeve, and clamp.
  3. Fit the Adapter L over the Eyepiece Adapter pushing all the way down, and clamp the entire camera assembly.

e. For Eyepieces GWH10×

  1. Use the intermediate ring marked with letters “GWH 10×”, provided with the PM-ADG-3.
  2. Unscrew the PM-ADG-3 into 3 parts.
  3. Insert the Eyepiece GWH10× into the lowest ring with clamping screw.
  4. Re-screw the other 2 rings into the lowest one.
  5. Place the Adapter L on the PM-ADG-3 and clamp.
  6. Connect the entire assembly into one of the eyepiece sleeves of the stereo microscope, and clamp.

OLYMPUS
OLYMPUS OPTICAL CO., LTD.
43-2 Hatagaya 2-chome, Shibuya-ku, Tokyo, Japan

Eyepiece Adapter PM-ADP

This adapter is intended for use with the Olympus P eyepieces. The adapter clamps on to vertical monocular tubes with an outside diameter of 25 mm or slightly less. The adapter slides completely on to the tube. The eyepiece is then inserted into the tube as normal, the adapter is raised until its top just comes into contact with the protruding lip of the eyepiece, and is then clamped in place.

Adaptador de Ocular PM-ADP

Olympus OM Eyepiece Adapter PM-ADP

Some older microscopes that take standard eyepieces have thick-walled tubes with a larger outside diameter than 25 mm, and the PM-ADP adapter cannot be used with them.

The adapter is not marked “Olympus” or “PM-ADP”.

Eyepieces P series
Top fitting Olympus 38 mm dovetail
Tube fitting 25 mm outside diameter
Height 28.0 mm
Diameter (main section) 41.8 mm
Diameter (collar) 56.9 mm
Weight 81 gm
Microscope ref. PM-ADP
Olympus no. B-0721
US catalog no.
Introduced 1972
Discontinued 2003
Adaptador de Ocular PM-ADP
PM-ADP with P eyepiece on Olympus BH-TR45 trinocular head

Versions

Only one version is known. When it was first introduced, the PM-ADP was known as the “P Adapter” or the “Eyepiece Adapter P”.

Instruction booklet

Reproduced with permission from the copyright owner, Olympus Optical Co., Ltd

HOW TO USE THE PHOTOMICRO ADAPTERS L & H

b. For Eyepiece P

  1. Fit the Eyepiece Adapter PM-ADP to the photo tube pushing all the way down.
  2. Insert the Eyepiece P into the photo tube.
  3. Pressing down the eyepiece against the photo tube slightly, raise the Eyepiece Adapter until it contacts with the eyepiece flange (be sure the eyepiece flange is in contact with both the photo tube and Eyepiece Adapter) and lock the adapter firmly with clamping screw.
  4. Coloque o Adaptador L sobre o Adaptador da Ocular empurrando todo o caminho e prenda toda a montagem da câmera.

OLYMPUS
OLYMPUS OPTICAL CO., LTD.
43-2 Hatagaya 2-chome, Shibuya-ku, Tóquio, Japão
